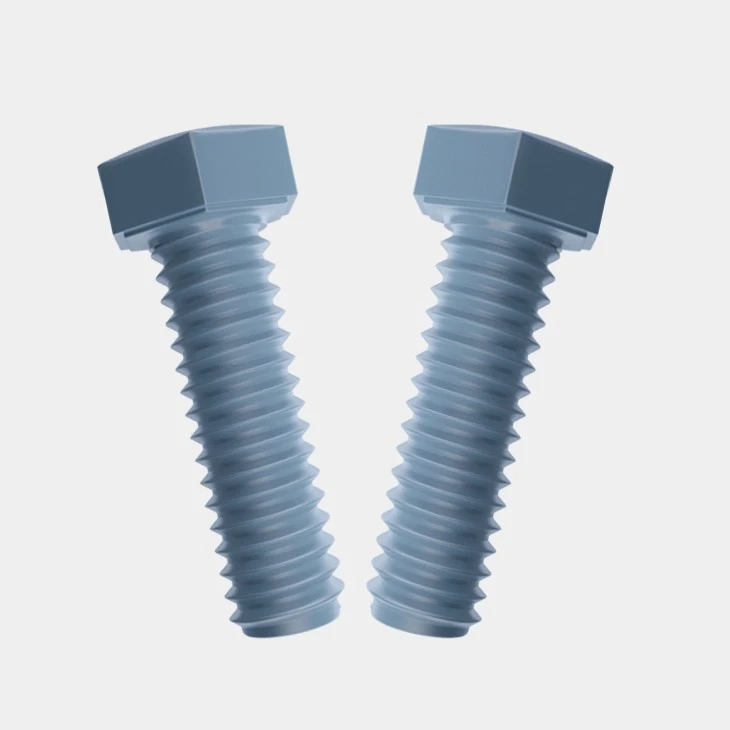

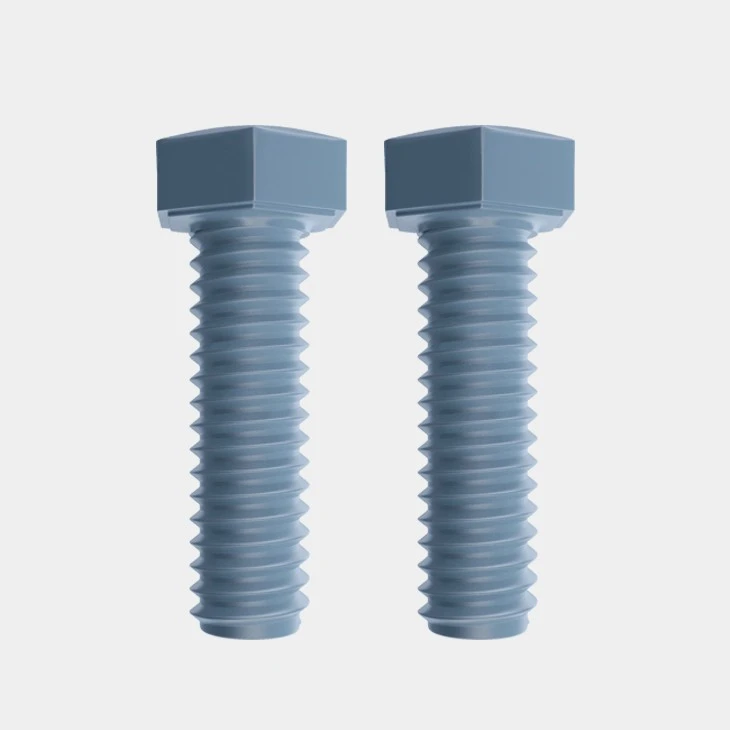

Full Thread Egzagòn boulon
Estanda: ISO 4018
Kalite fil: fil koryas, fil konplè
Komodite: Full Thread Egzagòn boulon
Yo te rele tou: Full Thread Hex Bolts
Materyèl: Kabòn Steel
Klas pwopriyete: 3.6, 4.6, 4.8
Dyamèt: M1.6, M2, M2.5, M3, (M3.5), M4, M5, M6, (M7), M8, M10, M12, (M14), M16, (M18), M20, (M22). ), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52)
Fini: Plain, oksid nwa, zenk plake, galvanize cho plonje, oksidasyon, Dacromet, fosfatasyon, kadmyòm electroplate, nikèl plake
Kalite tèt: tèt egzagòn
Kalite Kondwi: Eksteryè Hex
MOQ: 1000kgs
Tan plon: 30 a 60 jou
Pwodwi Entwodiksyon
Kòm yon founisè mondyal nan solisyon fikse Customized, pwosesis sevice AYA a tou pre kliyan kòm pwodwi AYA a. Soti nan dekri bezwen sèvis swiv-up, AYA pral san pèdi tan epi rezève okenn efò pou ede kliyan rezoud nenpòt pwoblèm fixation ki rive, elimine enkyetid kliyan yo.
DESKRIPSYON PWODWI
Non pwodwi | Full Thread Egzagòn boulon |
Yo rele tou | Full Thread Egzagòn boulon |
Materyèl | KabònSteel |
Estanda | ISO 4018 |
Klas pwopriyete | 3.6, 4.6, 4.8 |
Dyamèt | M1.6, M2, M2.5, M3, (M3.5), M4, M5, M6, (M7), M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52) |
Fini | Plain,Nwa oksid,Zenk plake,Cho plonje galvanised, Oksidasyon, Dacromet,Fosfatasyon,Kadmyòm Electroplate,Nikèl plake |
Kalite tèt | Egzagòn tèt |
Kondwi Kalite | Eksteryè Hex |
Kalite fil | Fil koryas,Fil konplè |

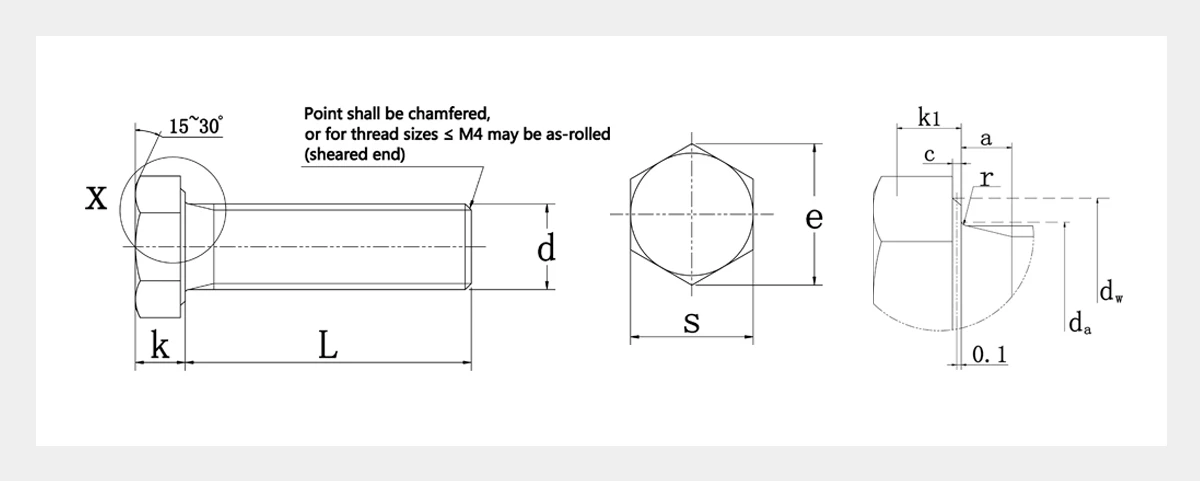

TAB DIMANSYON
| Vis fil | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | |
| d | |||||||||||||
| P | Anplasman | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| a | max | 2.4 | 3 | 4 | 4.5 | 5.3 | 6 | 6 | 7.5 | 7.5 | 7.5 | 9 | 9 |
| min | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | |
| c | max | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| da | max | 6 | 7.2 | 10.2 | 12.2 | 14.7 | 16.7 | 18.7 | 21.2 | 24.4 | 26.4 | 28.4 | 32.4 |
| dw | min | 6.74 | 8.74 | 11.47 | 14.47 | 16.47 | 19.15 | 22 | 24.85 | 27.7 | 31.35 | 33.25 | 38 |
| e | min | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 |
| k | Gwosè Nominal | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 |
| max | 3.875 | 4.375 | 5.675 | 6.85 | 7.95 | 9.25 | 10.75 | 12.4 | 13.4 | 14.9 | 15.9 | 17.9 | |
| min | 3.125 | 3.625 | 4.925 | 5.95 | 7.05 | 8.35 | 9.25 | 10.6 | 11.6 | 13.1 | 14.1 | 16.1 | |
| k1 | min | 2.19 | 2.54 | 3.45 | 4.17 | 4.94 | 5.85 | 6.48 | 7.42 | 8.12 | 9.17 | 9.87 | 11.27 |
| r | min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 |
| s | max=dimansyon nominal | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 |
| min | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | |
| Vis fil | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | |
| d | ||||||||||||
| P | Anplasman | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 |
| a | max | 10.5 | 10.5 | 12 | 12 | 13.5 | 13.5 | 15 | 15 | 16.5 | 16.5 | 18 |
| min | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | |
| c | max | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| da | max | 35.4 | 38.4 | 42.4 | 45.4 | 48.6 | 52.6 | 56.6 | 62.6 | 67 | 71 | 75 |
| dw | min | 42.75 | 46.55 | 51.11 | 55.86 | 59.95 | 64.7 | 69.45 | 74.2 | 78.66 | 83.41 | 88.16 |
| e | min | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 |
| k | Gwosè Nominal | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 | 35 | 38 | 40 |
| max | 19.75 | 22.05 | 23.55 | 26.05 | 27.05 | 29.05 | 31.05 | 34.25 | 36.25 | 39.25 | 41.25 | |
| min | 17.65 | 19.95 | 21.45 | 23.95 | 24.95 | 26.95 | 28.95 | 31.75 | 33.75 | 36.75 | 38.75 | |
| k1 | min | 12.36 | 13.97 | 15.02 | 16.77 | 17.47 | 18.87 | 20.27 | 22.23 | 23.63 | 25.73 | 27.13 |
| r | min | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 2 |
| s | max=dimansyon nominal | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 |
| min | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |

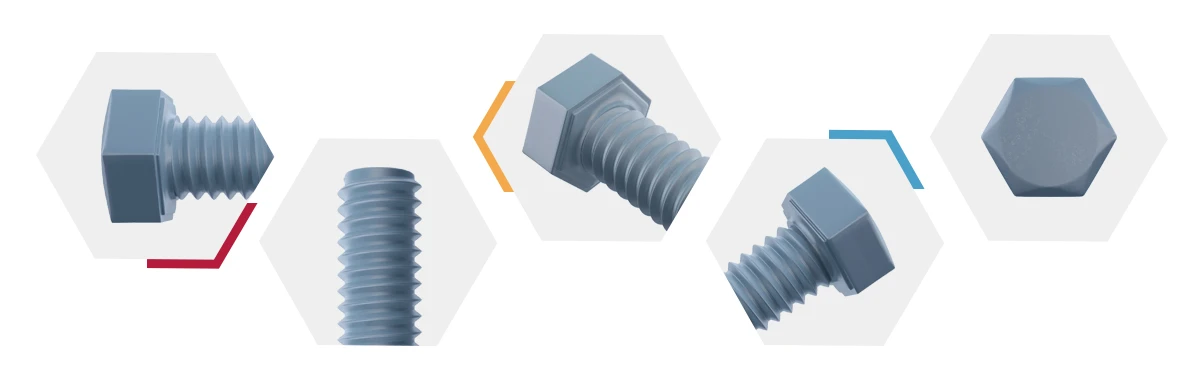

DETAY PWODWI
Avantaj pwodwi yo
Avantaj ki genyen nan boulon Egzagòn Full Thread
1.Tèt la egzagonal fè li pito senp okipe nan travay la.
2. adaptabilite eksepsyonèl. Li ka itilize nan diferan travay pou atache itilizasyon.
3.High-Quality matyè premyè. Li fèt ak pwodwi asye eksepsyonèl.
4. Long lavi span. Resous de baz remakab fè yon ire lavi long.
5. Yo ofri solisyon pèsonalizasyon pou demann Fastener inik.
6. AYA te fabrike atik sa a pou plis pase 10 ane.
ENSPKSYON KALITE
PACKAGING & REsipyan CHAJMAN
SENARY UTILIZASYON
POUKISA CHWAZI AYA?
AYA bay sèvis eksklizif bay 1000 plis manm ki soti nan tout mond lan chak ane, ak yon sistèm solisyon sèvis chèn inik, ou sèlman bezwen klike sou sourit la pou jwenn solisyon fixation eksklizif epi jwi sèvis pòt-an-pòt.
